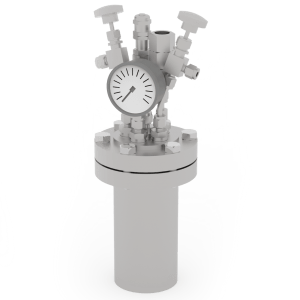

Autoclave System

  • Volume: 100 mL – 20000 mL
  • Maximum working pressure: 150 bar
  • Minimum applicable temperature: -80 °C
  • Maximum applicable temperature: 400 °C
  • Analogue or digital pressure measurement
  • Different optional heating modes (i.e. electric, jacket)
  • Number of inlet and outlet valves due to the user requirements
  • Easy handling
  • Minimal maintenance required
  • Optional mode of control (PC or touchscreen)


Wide range of our autoclaves offer good solution to numerous chemical tasks. These reactors have been designed from 100 mL to 20 L volume. Our autoclaves offer working pressure up to 150 bar and temperature up to 400 °C depending on the volumes and user requirements. These autoclaves are available in standard non-stirred design or in part of stirred autoclave systems. These autoclaves can be equipped with many optional accessories, such as bottom drain valve, bottom filter, cooling coil, catalyst basket.

According to the construction and the applied materials provide the safe operation and long lifetime. Safety parts of the reactors ensure the safe work on high temperature and pressure as well. For instance hydrogenation, catalyst screening can be performed with it.

Our engineer team takes care of development and the design of unique reactors.
